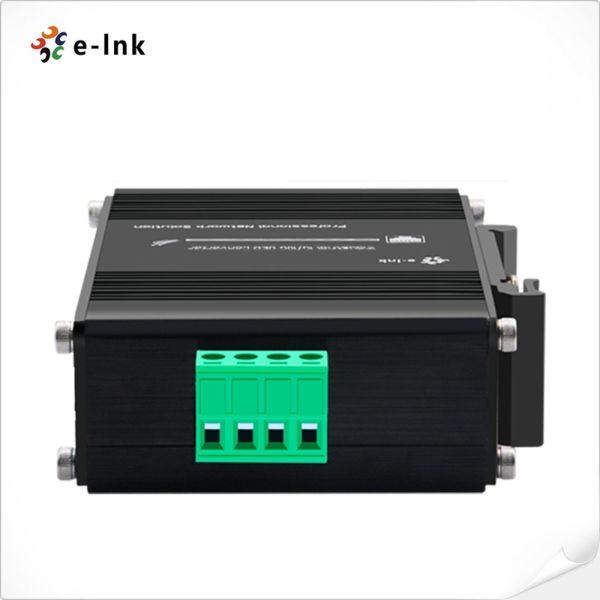

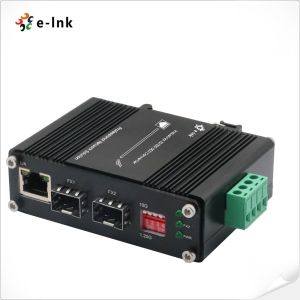

    Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+

    Ask Lasest Price
    Brand Name : E-link
    Model Number : ETH-IMC2402-OEO
    Certification : ROHS,FCC,CE
    Price : $39-270
    Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 1000 pcs/month
    Delivery Time : 5-12 working days
    • Product Details
    • Company Profile

    Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+

    Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+


    Industrial OEO Converter 10G SFP+ To SFP+ With 1G Ethernet Media Converter Function


    10G OEO Fiber Media Converter Advantages
    ► 3R function (Regeneration, Reshaping, Re-timing)
    ► Support hot plugging, full state led display, easy installation
    ► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
    ► DIP Switch supports 1.25G/10G fiber data rate switching
    ► Can be as 1G Ethernet Media Converter if using Ethernet

    10G Fiber To Fiber Media Converter Overview
    It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
    When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
    Din Rail SFP To SFP Media Converter Technical Indexes

    Protocols

    8.5G Fiber Channel
    SONET OC-192, SDH STM-64 (9.95Gbps)
    10G WAN (10Gbps)
    10G LAN (10.31Gbps)
    OTN OTU-2 (G.709) (10.70Gbps)
    10G LAN with 255/237 FEC coding (11.09Gbps)
    10G Fiber Channel (11.32Gbps)
    10G POS

    Operating Temperature

    -40°C to 80°C (-40°F to 176°F)

    Network Cables

    Twisted-pair
    10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
    100BASE-TX: 2-pair UTP Cat. 5, up to 100m
    1000BASE-T: 4-pair STP Cat 5 up to 100m
    Fiber-optic Cable
    1000BASE-SX:
    50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
    1000BASE-LX:
    9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

    Input Power

    12~48VDC, Redundant Power (6-pin Terminal Block)

    Power Consumption

    8W Max

    Dimensions (WxDxH)

    95 x 70 x 30 mm

    Weight

    0.25Kg

    Casing

    Aluminum Case

    Mounting Options:

    DIN-Rail mount



    10G OEO Media Converter Ordering Information

    Model

    Description

    ETH-IMC2402-OEO

    Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

    SFP Options

    ► SFP option. Please select your SFP on our SFP Options Page

    ► SFP module is to be purchased separately.

    Mounting Options

    ► Default DIN-Rail Bracket installed

    Power Options

    ► DIN-Rail Power Supply. Open Wire for Terminal Block.

    ► Power Supply is to be purchased separately.
