    Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-IMC10G-SFP+
    Certification : ROHS,FCC,CE
    Price : $29.9-389
    Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal
    Supply Ability : 1000 pcs/month
    Delivery Time : 3-12 working days
    • Product Details
    • Company Profile

    Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

    Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter


    Advantages

    ► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface

    ► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant

    ► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode

    ► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

    ► Extensive LED indicators for network diagnostics

    ► 12~48VDC Terminal Block Power Input

    ► Supports DIN-Rail & Wall-mount installation

    ► Environmentally hardened -40°C to 75°C
    (-40°F to 167°F) operating temperature


    Overview

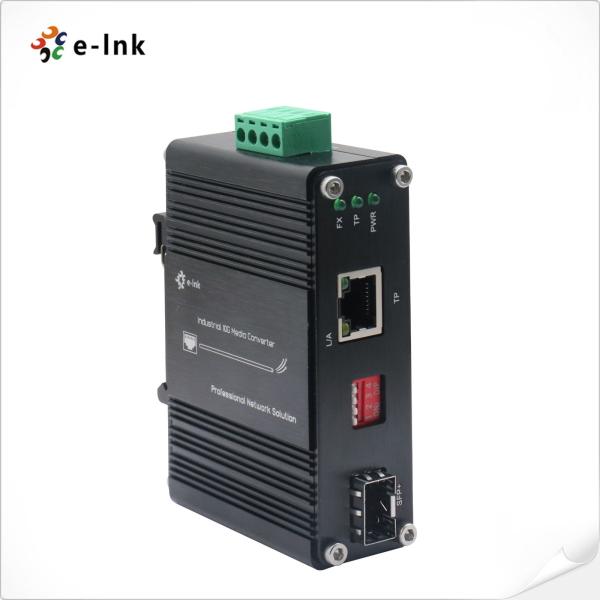

    LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10G-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80 degrees C.

    Ordering Information

    Model

    Description

    LNK-IMC10G-SFP+

    Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

    SFP Options

    ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).

    ► SFP+ module is to be purchased separately.

    Mounting Options

    ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

    Power Options

    24W/1A 24VDC Power Supply. Open Wire for Terminal Block

    ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

    ► Power Supply is to be purchased separately.





    Application
